| Design Codes | EN 14917, EN 13445, EN 13480, ASME, ASME VIII Div-1, ASME B31.3, AD 2000 | |
| Grades | Austenitic Stainless Steels, SMO 254, 904L, SS 321, 310, 304/304L, 316L, 317, High Alloys, Duplex 2205, 31803, 32750, 32760, Titanium Gr. 2, 5, 7, 12, Hastelloy C276, C22, Incoloy 800, 800HT, Inconel 600, 625, 601, Alloy 59, Alloy 31 | |
| Product Type | Dimensions | Radius / Pressure / Temperature |
|---|---|---|
| Lens Expansion Joint | DIA up to DN 2500 Larger dimensions on request | Radius (R): 15, 20, 30, 50, 60, 80 MM 1.5 MM: Max R = 15 2–3 MM: Max R = 30 4–5 MM: Max R = 60 6–8 MM: Max R = 80 |

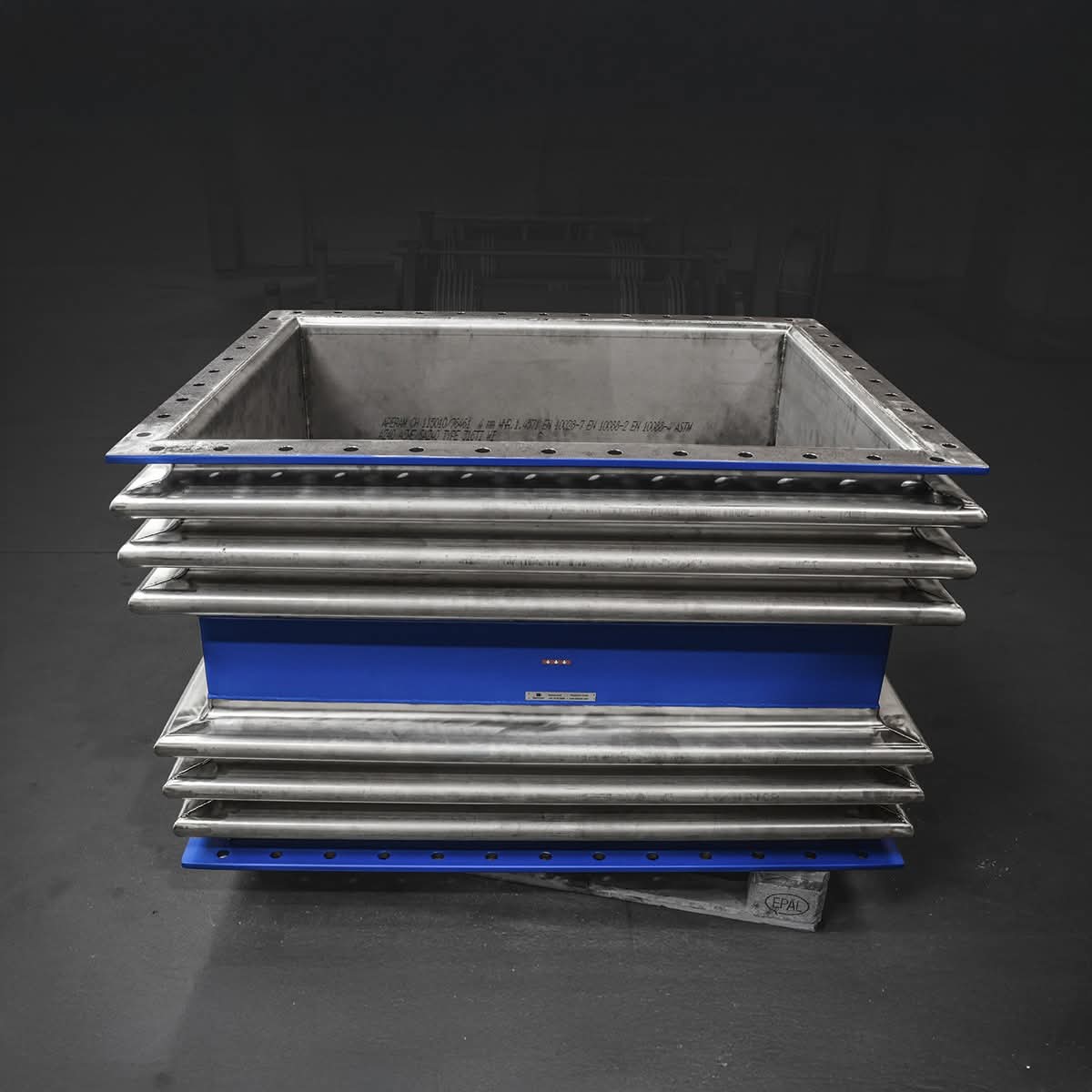

| Rectangular Expansion Joint & Bellow | As per customer requirement | |
| Heat Compensator (Heating & Ventilation) | BSP Ends DN 15–50 Welding Ends DN 15–100 | Pressure: Up to 16 BARG (232 PSI) Temperature: Up to 120°C Material: Bellow AISI 321, Inner Sleeve AISI 304 |
| Sanicomp Hygienic Expansion Joint Bellow | 2" to 6" | Pressure up to 25 BARG (362 PSI) |
| Non-Metallic Bellows | Up to DN 5000 | Pressure up to 25 BARG (362 PSI) Materials: EPDM, NBR, CSM, SI, ECO, etc. |
| Axial Expansion Joint | DN 15 – DN 12.000 | Pressure: Up to 150 BARG (2176 PSI) Temperature: −256°C to +1000°C |
| Lateral Expansion Joint | DN 15 – DN 12.000 | |
| Angular Expansion Joint & Bellow | DN 15 – DN 12.000 | |
| Universal Expansion Joint | DN 15 – DN 12.000 | |
| Exhaust Expansion Joint & Bellow | DN 15 – DN 12.000 | |
| Vibration Absorbers | DN 15 – DN 12.000 | |
| Pressure Balanced Joint | DN 15 – DN 12.000 | |
| Elbow Pressure Balanced Expansion Joint | DN 15 – DN 12.000 | |
| Ring Reinforcement Bellow | DN 15 – DN 12.000 | |
| Crossover Piping Bellows & Steam Expansion Joint | DN 15 – DN 12.000 | |
| Externally Pressurised Expansion Joint | DN 15 – DN 12.000 | |
| Clamshell Bellow | DN 15 – DN 12.000 | Pressure: Up to 150 BARG (2176 PSI) Temperature: −256°C to +1000°C |
